Taming Outlier Tokens in Diffusion Transformers

TL;DR

Outlier tokens — a handful of high-norm patch tokens that absorb attention but carry little local information — are not just a ViT recognition phenomenon. They also appear in the encoders and the denoisers of modern RAE-style diffusion pipelines, and they hurt generation quality.

DSR introduces register tokens at both stages — the ViT-based tokenizer and the diffusion transformer. It cuts ImageNet-256 FID for RAE-DiT-XL (SigLIP2-B) from 5.89 → 4.58 at 80 epochs and raises GenEval on a large-scale text-to-image task from 0.426 → 0.466, with consistent gains across SiT, JiT, and RAE designs.

Where do outlier tokens hide in a DiT pipeline?

A modern RAE-style pipeline has two transformer stages — a ViT encoder that produces the latent representation, and a diffusion transformer that denoises in that space. We observe outlier tokens in both, but with distinct patterns.

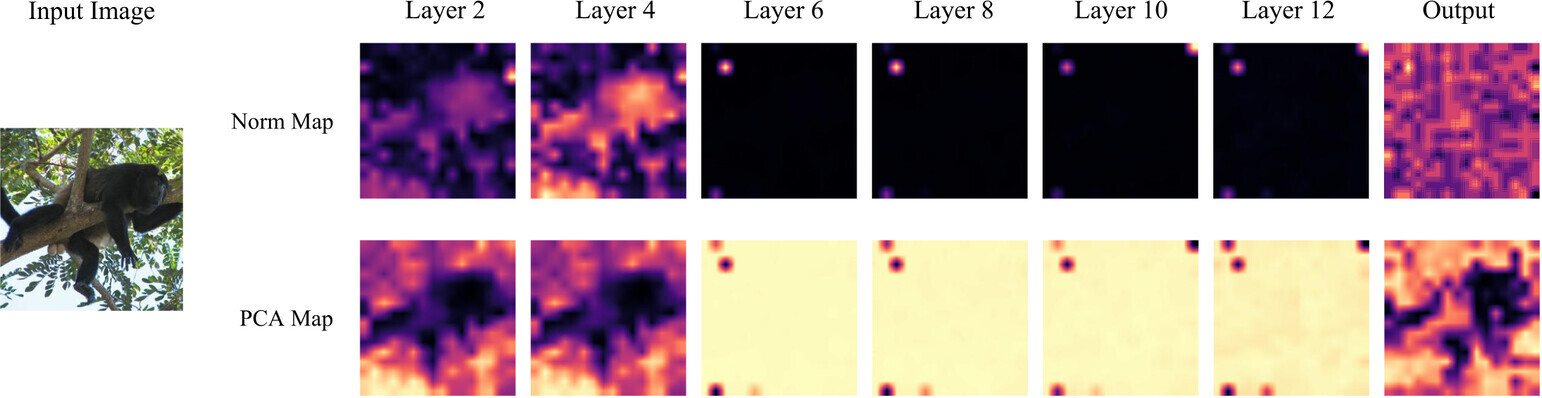

Outlier tokens in the SigLIP2-B encoder — **Outliers in the ViT encoder.** Token-norm maps across layers of SigLIP2-B. Severe high-norm tokens emerge in the last few layers; the penultimate layer shows the strongest pattern, while the final output is somewhat more stable — likely a side-effect of SigLIP2's reconstruction-flavored objective.

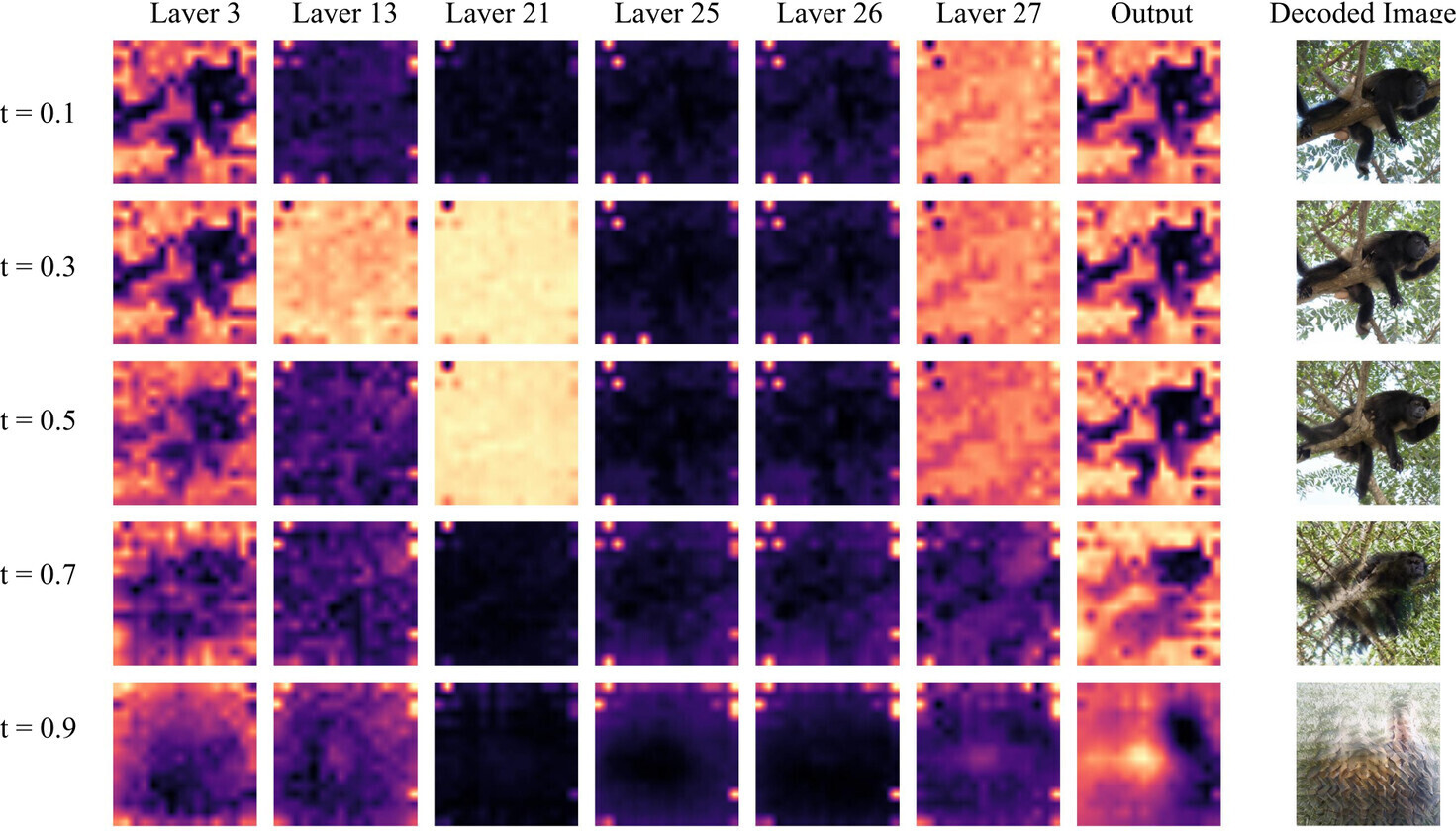

Outlier tokens in the diffusion transformer across noise levels and layers — **Outliers in the diffusion transformer.** Norm maps of RAE-DiT (SigLIP2-B) across diffusion noise scales and DiT layers. Unlike standard ViTs, high-norm tokens concentrate in *intermediate* layers, and their severity drops as the noise level increases — suggesting that encoder anomalies are amplified by the denoising objective.

Why masking the loss doesn't fix it

A natural hypothesis is that the issue is just a few extreme-loss tokens. We tested this with a token-level loss mask that drops tokens whose representation norms exceed a threshold. As shown below, masking does not improve generation. We take this as evidence that outliers are a symptom of corrupted local patch semantics, not the root cause.

Training strategy	% tokens filtered	FID ↓	IS ↑	Prec ↑	Rec ↑
RAE-DiT-XL (SigLIP2-B)	0%	5.89	156.54	0.686	0.562
+ loss masking (τ = 100)	0.1%	6.06	152.72	0.686	0.562

Dual-Stage Registers (DSR)

If outliers reflect degraded local patch semantics, then we want a mechanism that absorbs global, sink-like behavior without contaminating patch tokens. Register tokens do exactly that — and we apply them on both sides of the pipeline.

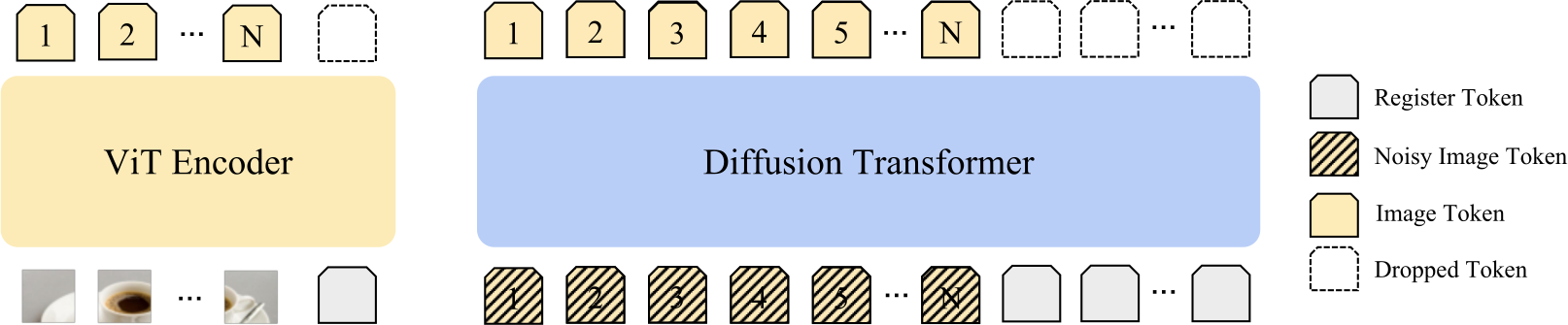

DSR framework overview — **Dual-Stage Registers (DSR).** We patch *both* sides of the diffusion pipeline with register tokens: a test-time register in the ViT encoder, and 36 trained registers in the diffusion transformer. Encoder and diffusion register outputs are discarded before downstream use, leaving only patch tokens.

Encoder-side registers

When trained registers are available (e.g. DINOv2 with registers), we use them directly. They visibly suppress high-norm artifacts and consistently improve downstream DiT generation:

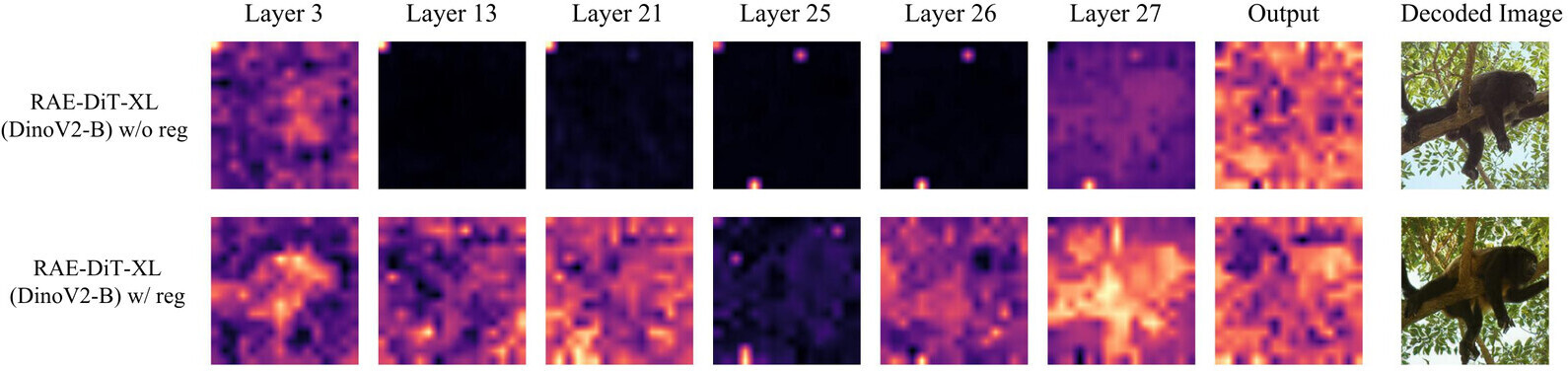

Norm maps with and without trained DINOv2 registers — **Trained encoder registers cleanly remove outliers.** RAE-DiT (DINOv2-B) with and without trained registers, at a fixed diffusion timestep t = 0.5. Registers consistently suppress high-norm tokens and improve patch-level representations.

For encoders without trained registers (e.g. SigLIP2), we use test-time registers (TTR) — extra tokens appended at inference time. For SigLIP2-So400, where we find two distinct outlier populations, we apply TTR recursively: stabilize the encoder, then apply TTR again on the resulting representation.

Strategy	FID ↓	IS ↑	Prec ↑	Rec ↑
RAE-DiT-XL (SigLIP2-B)	5.89	156.54	0.686	0.562
+ test-time register	4.63	177.20	0.748	0.542
RAE-DiT-XL (SigLIP2-So400)	7.04	167.01	0.682	0.515
+ test-time register	6.66	166.88	0.687	0.527
+ recursive test-time register	6.48	163.35	0.684	0.531

Diffusion-side registers

Even after fixing the encoder, the DiT itself still develops outlier tokens in its intermediate layers. We add a small number of trainable diffusion registers — learned jointly with the generator and discarded at inference. With them, internal outliers largely disappear and PCA structure becomes cleaner:

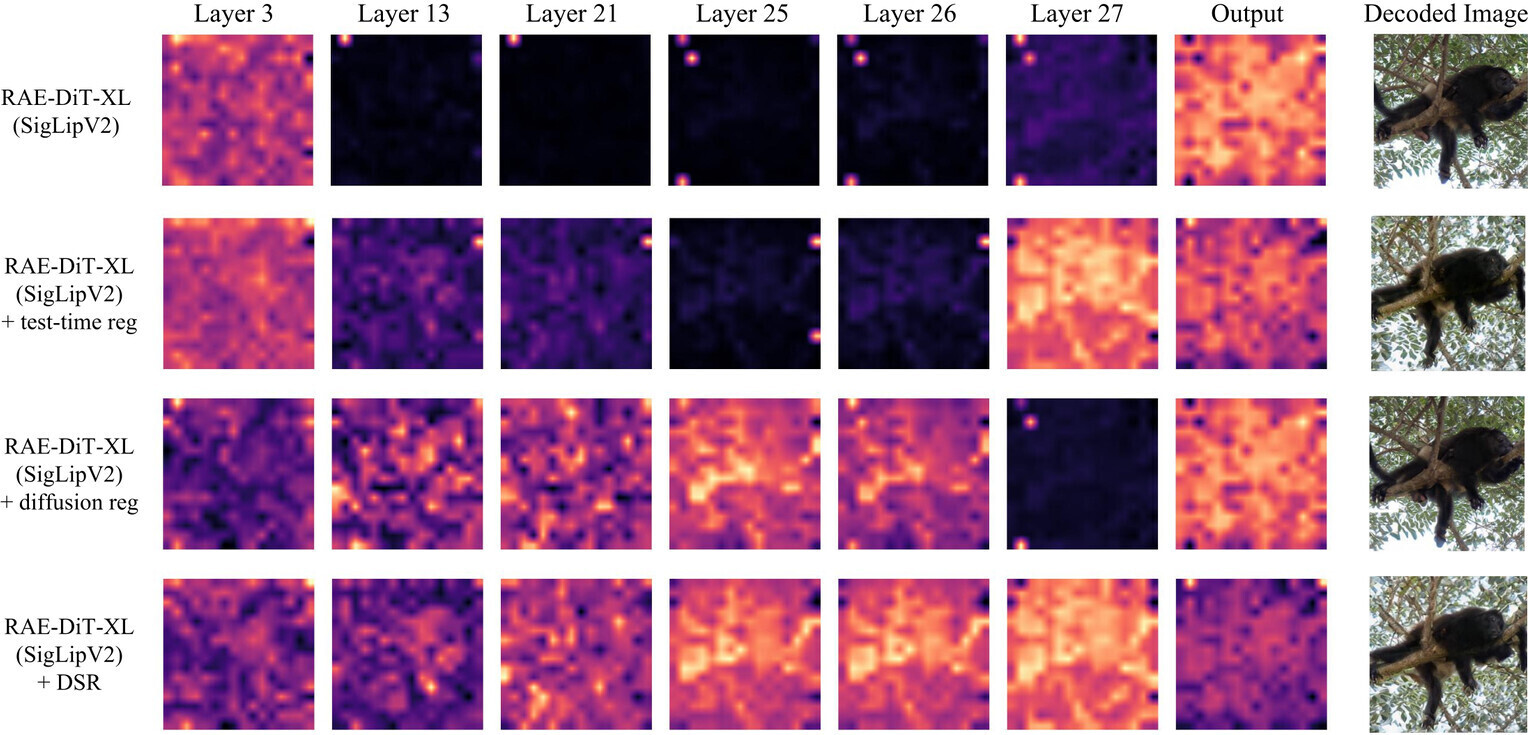

Norm maps for baseline, encoder-only DSR, and full DSR — **Outliers are only fully suppressed when both sides are patched.** Baseline vs. encoder-only test-time registers vs. full DSR (encoder + diffusion registers).

PCA maps for baseline, encoder-only DSR, and full DSR — **PCA maps.** Encoder-side TTR already produces a visible cleanup in PCA structure; adding diffusion registers brings a further small improvement.

Results

Diffusion registers help across input spaces

Diffusion registers improve every input-space variant we tried — pixel-space (JiT), VAE latents (SiT), and multiple representation encoders. The gain is not tied to any particular tokenizer family.

Method	FID ↓	IS ↑	Prec ↑	Rec ↑
RAE-DiT-XL (DINOv2-B, w/ encoder reg)	4.11	226.44	0.775	0.529
+ diffusion reg	3.92	226.92	0.773	0.542
RAE-DiT-XL (SigLIP2-B)	5.89	156.54	0.686	0.562
+ diffusion reg	5.33	166.20	0.702	0.556
RAE-DiT-XL (SigLIP2-B, w/ TTR)	4.63	177.20	0.748	0.542
+ diffusion reg	4.58	165.99	0.725	0.560
VAE-SiT-XL	16.05	70.11	0.550	0.647
+ diffusion reg	14.47	78.50	0.554	0.651
JiT-H	30.34	22.34	0.424	0.621
+ diffusion reg	23.14	26.36	0.475	0.611

ImageNet-256: class-conditional generation

Headline numbers on ImageNet-1K at 256×256. DSR consistently improves RAE-DiT and, when combined with the DDT head, reaches strong competitive numbers at a fraction of the training budget.

Method	Epochs	#Params	gFID ↓ (no CFG)	gFID ↓ (w/ CFG)
Pixel diffusion
ADM	400	554M	10.94	3.94
JiT-H/16	600	953M	—	1.86
Latent diffusion (VAE)
SiT-XL	1400	675M	8.61	2.06
REPA	800	675M	5.78	1.29
REPA-E	800	675M	1.70	1.15
RAE-DiT^DH-XL (DINOv2-B)	800	839M	1.51	1.13
Latent diffusion with multimodal encoder (SigLIP2-B)
RAE-DiT-XL	80	676M	5.89	—
RAE-DiT-XL	800	676M	3.85	3.58
RAE-DiT-XL + DSR	80	676M	4.58	—
RAE-DiT-XL + DSR	800	676M	3.26	2.97
RAE-DiT^DH-XL	800	839M	2.91	2.77
RAE-DiT^DH-XL + DSR	800	839M	2.72	2.62

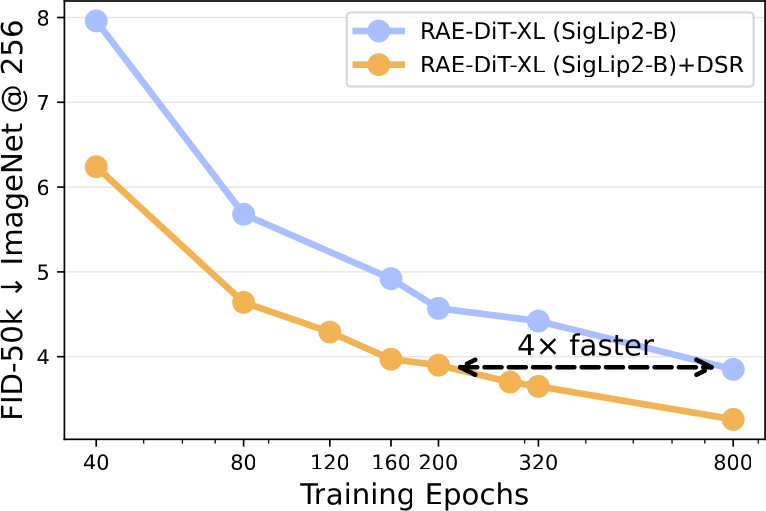

FID vs. training epoch — DSR reaches the baseline quality with 4× fewer epochs

DSR also trains faster. FID vs. epoch on ImageNet-256 — DSR reaches comparable quality with 4× fewer epochs than the RAE baseline.

Scaling across model sizes

DSR improves gFID at every DiT scale we tried, with only ~10% added GFLOPs.

Model	FID ↓	IS ↑	Prec ↑	Rec ↑	GFLOPs
RAE-DiT-S (SigLIP2-B)	28.03	66.15	0.277	0.302	12.4
+ DSR	23.93	63.86	0.498	0.470	13.7
RAE-DiT-B (SigLIP2-B)	20.36	78.76	0.539	0.493	46.6
+ DSR	9.81	110.23	0.637	0.543	51.2
RAE-DiT-XL (SigLIP2-B)	5.89	156.54	0.686	0.562	238.1
+ DSR	4.58	165.99	0.725	0.560	262.9

All rows trained for 100k iterations under matched protocol.

Text-to-image (Scale-RAE)

On Scale-RAE — a SigLIP2-B + MetaQuery T2I pipeline trained on 24.7M FLUX.1-schnell synthetic images — DSR also delivers a clean improvement on both GenEval and DPG-Bench.

Model	GenEval ↑	DPG-Bench ↑
Baseline (Scale-RAE)	42.6	74.3
Ours (Scale-RAE + DSR)	46.6	75.4

Qualitative samples (text-to-image)

Same prompt, same seed grid, baseline (left) vs. DSR (right). DSR's improvements tend to show up as cleaner composition, more consistent object identity, and fewer texture artifacts.

"a photo of a cow"

Baseline

DSR (ours)

"a photo of a purple potted plant"

Baseline

DSR (ours)

DSR samples for: a photo of a purple potted plant

"a photo of an elephant below a surfboard"

Baseline

DSR (ours)

DSR samples for: a photo of an elephant below a surfboard

"a photo of a white toilet and a red apple"

Baseline

DSR (ours)

DSR samples for: a photo of a white toilet and a red apple
